Main advantages
(1) Uses ultra-fine needles capable of dispensing minute amounts of 0.1cc/min or less

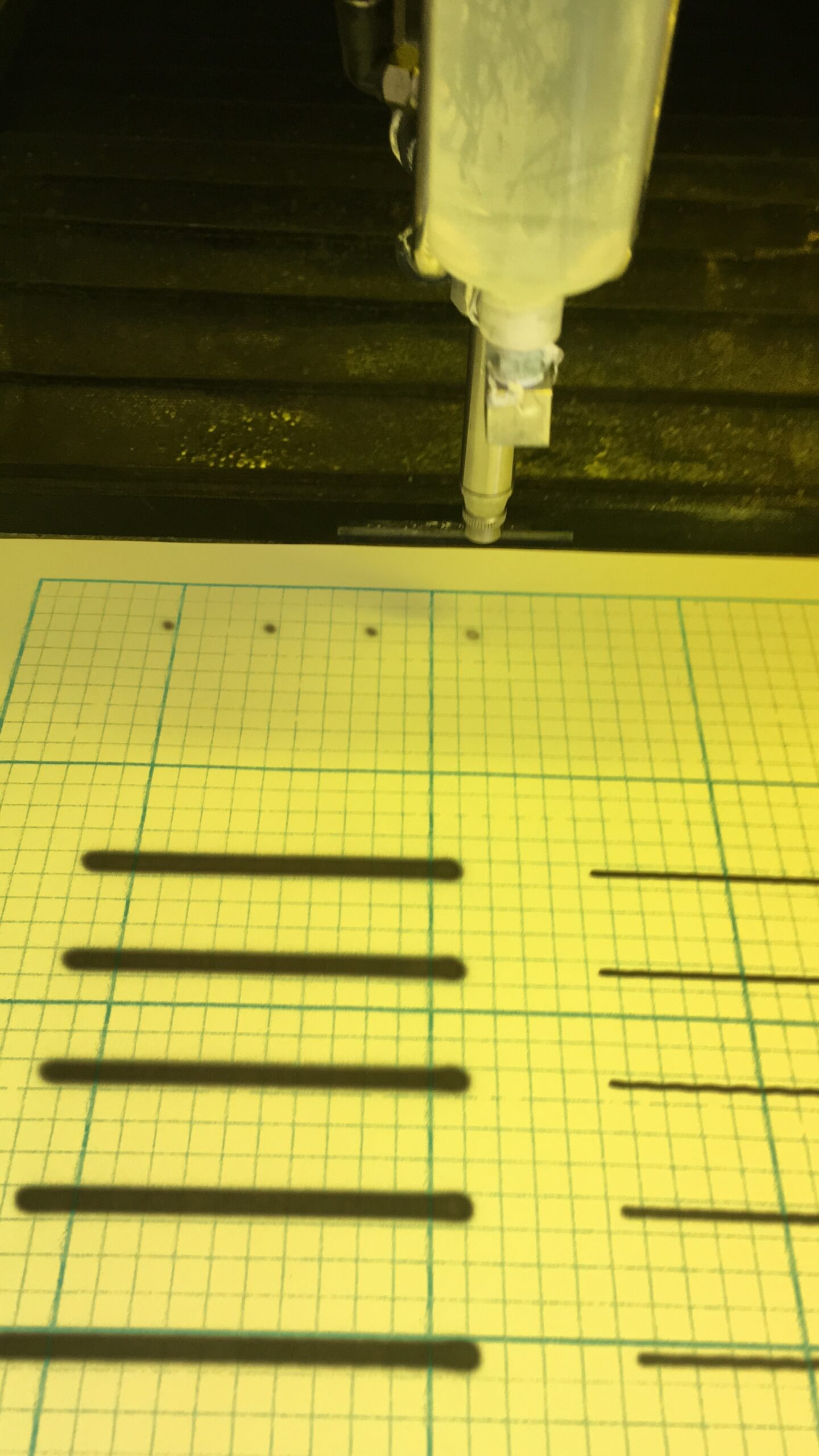

(2) Forms coating patterns from 1mm to 10mm wide.
(3) Special air cap system produces extremely fine particles (normal particle size is 1-2μ)
(4) Layered coating possible using XY scan method with CP-operable orthogonal precision robot
(5) Coating thickness of photoresist, etc. can be created at 0.02μm to 30μm (depending on solid content).
(6) Coating efficiency is 80-98%, which is several dozen times more efficient in using coating material than spin coating method.

Solvent-based desiccant can be selectively sprayed from below without flipping the board
Selective spraying possible from nozzle distance of 5-30mm (@spray width 3-9mm)
